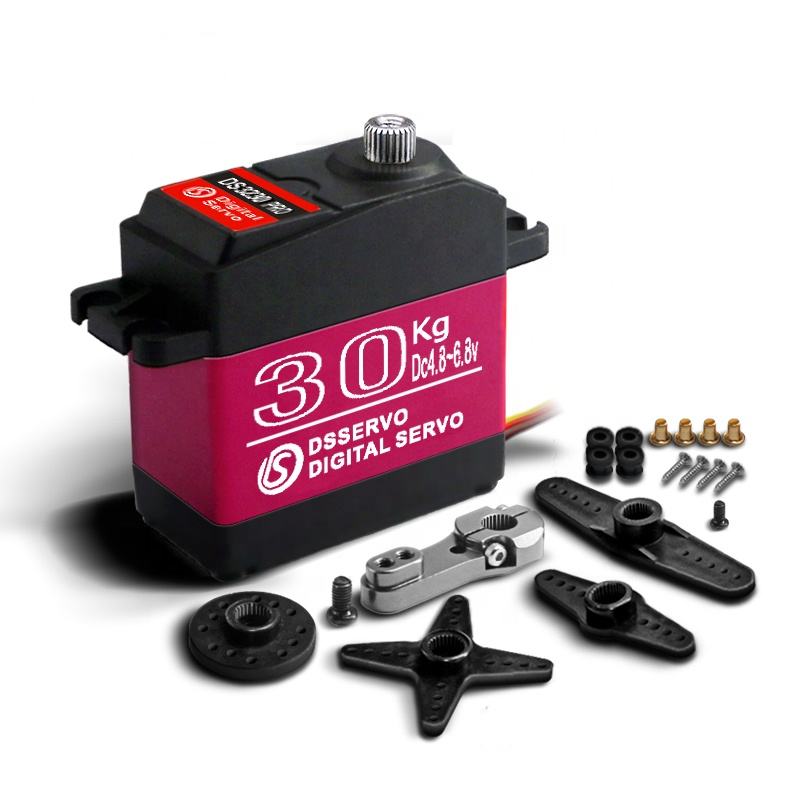

DS3230 30KG Waterproof Metal Gear Digital Servo Motor

Specification:

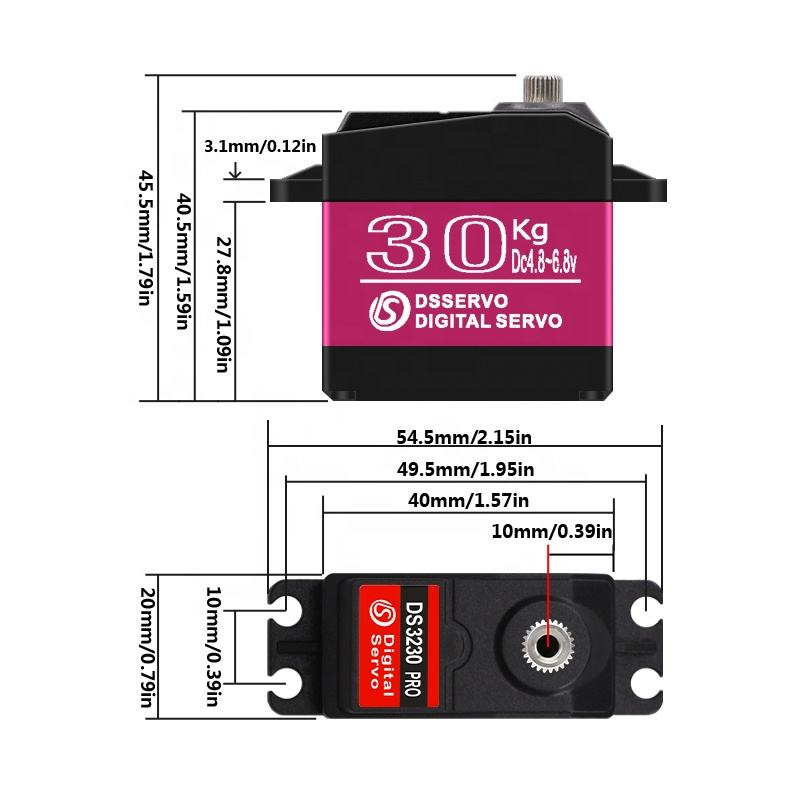

• Size: 40.0*20*40.5mm
• Weight: 78g±2g
• Limit angle: 360°
• Bearing: 2BB
• Horn gear spline: 25T Diameter:5.9mm
• Case : Engineering plastics+Aluminum alloy
• Connector wire: 320mm±5mm
• Motor: Carbon brush motor
• Working voltage range: 4.8 – 6.8V
• Command signal: Pulse width modification
• Amplifier type: Digital controller
• Pulse width range: 500～2500usec
• Neutral position: 1500usec
• Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM 500～2500usec)
• Dead band width: 3 usec
• Rotating direction Counterclockwise: (when 1000～2000usec)
