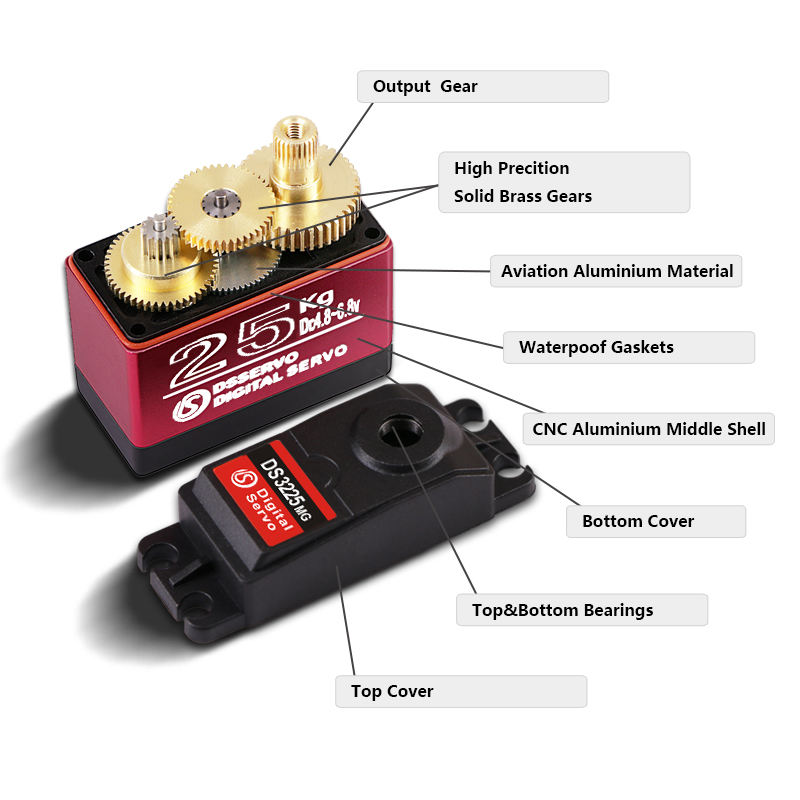

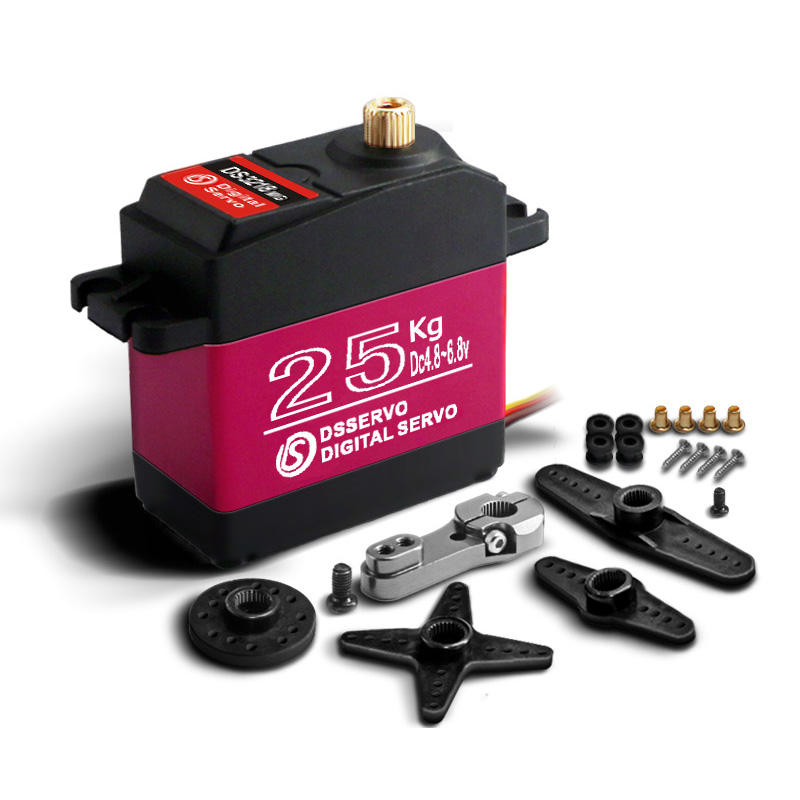

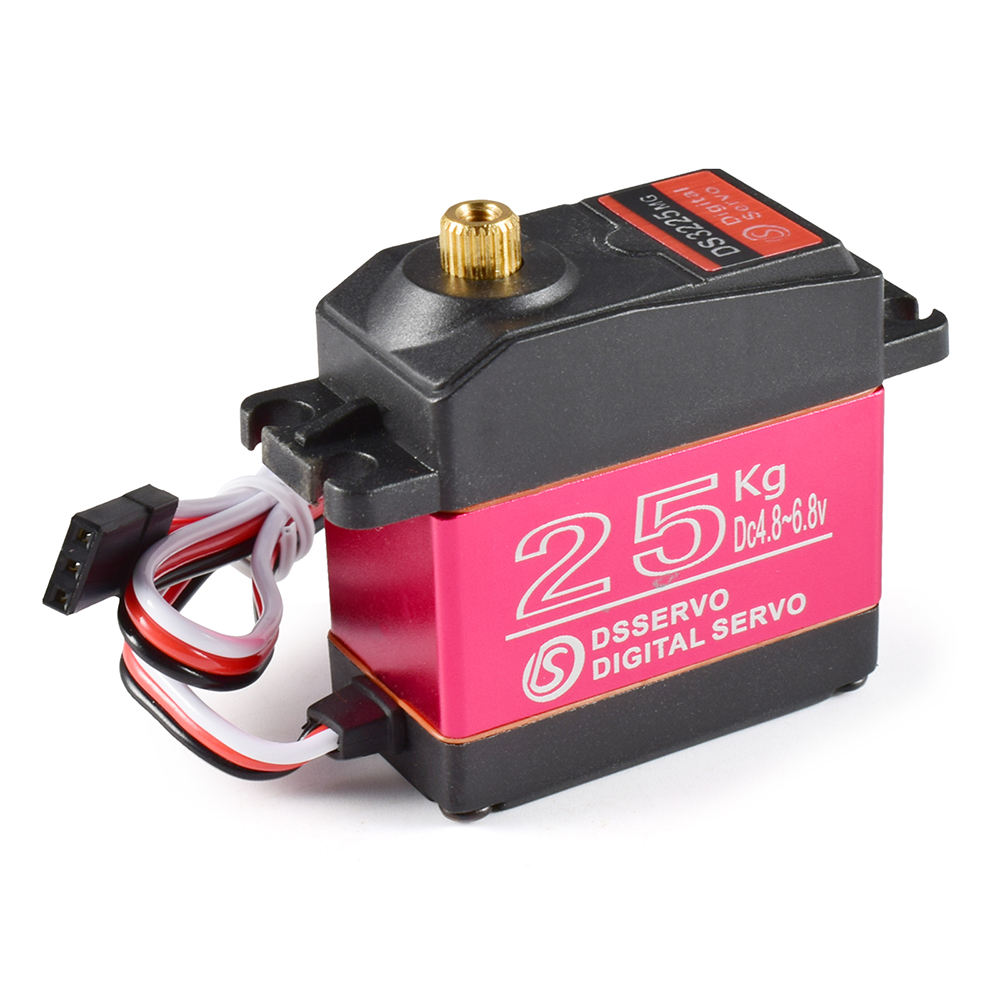

DS3225MG 25KG Waterproof Metal Gear Digital Servo Motor

Specifications:

• Brand: DSSERVO
• Item: DSSERVO DS3225 Digital Servo
• Rotation Angle: 180 degree
• Operating voltage: 4.8 – 6.8V
• Operating speed ( 5.0V ): 0.15 sec/60 degree
• Operating speed ( 6.8V ): 0.13 sec/60 degree S
• tall torque ( 5.0V ): 21kg/cm
• Stall torque ( 6.8V ): 25kg/cm
• Dead band: 3μs
• Working frequency: 50-333Hz
• Connector wire: About 300mm
• Gear type: Metal
• Motor Type: DC motor
• Size: 40 * 20 * 40.5mm
• Weight: 67g
